NEW 60W Smart Integrated Solar LED Garden/Street Light

NEW 60W Smart Integrated Solar LED Garden/Street Light

  • 100% energy saving
  • All-in-one design
  • No cable, no power, only sun power
  • Built-in movement sensor
  • BRIDGELUX LED, 110-120lumen/w
  • IP65
  • Light volume to save freight cost

Product Detail:




Newly Improved design for 60W:



Smart Integrated Solar Street/Garden light Features:

1) All in one, intelligent integrated design;

2) Sun powered, 100% energy saving;

3) Without any cable, easy to install and ship;

4) Built-in infrared sensor, can adjust the light output automatically;

5) Modern portable design can be installed anywhere needed;

6) Compact volume can save freight and installation costs;

7) Rust-proof, dustproof and waterproof;



Benefits of Smart Solar Integrated solar Garden/Street Light

Lower Initial Cost– It is less expensive to purchase and install a solar powered street light than a traditional street light.



Lower Operation Cost– It is less expensive to operate a solar powered street light than a traditional street light.



Compact Design- Our design and technology implementation have been driven by our desire to eliminate the need for bulky external battery boxes and external solar panels and achieve a FULLY INTEGRATED Solar Powered Street Light. To achieve this, we have designed our system to have maximum light output with minimum power consumption using our proprietary high efficiency solar cells located directly on the light fixture.



Reduced Damage/Theft- By locating the solar technology directly on the light fixture and placing the battery within the light fixture, the risk of damage, theft or tampering is greatly reduced. There are no wires in the street pole, which means that the wire itself (which exists in regular street lights) can’t be stolen and sold for scrap.



Ruggedized Technology– The solar powered street light is deigned based upon our extensive experience of using electrical and electronic equipment in harsh environments, our engineered solutions require less maintenance and reduced parts replacement due to initially incorporating higher quality components.



Insect Swarms– The solar powered street light uses LED lighting which does not produce Infrared light, and therefore will not attract insects. (No more moths and other flying insects swarming around the light.)



Improved Safety– The solar powered street light does not require connection to an electrical grid. It is safer and easier to install. In the event of a power outage, the light remains on. This reduces the chance of car accidents and the constant light deters theft/vandalism from nearby businesses.



Anywhere/anytime – The solar powered street light can be used in any location. Since no electrical grid is required, it can be installed on buildings, in parking lots, in remote locations simply by hanging it on a pole.



Faster Installation– Since you don’t need to trench power lines to the pole, run wires up the pole, connect wires to an electrical grid, or hard wire the street light, the installation is significantly faster. In fact, it is so easy, it can be installed on the pole before it’s erected, and thereby reducing a step completely from the process.





Application:

The product can be used for new rural construction, manor, villa, courtyard, park, parking, bicycle and pedestrian walkways, children entertainment, farm and pier etc.





Product Parameters :



Integrated Solar garden light (60W) Model: C0SS-8060
Solar panel Max power 18V 80W (high efficiency Monocrystalline silicon)
Life time 25 years
Battery Type 42AH lithium battery
Life time 5 years
LED Lamp (without sensor) Max power 12V 60W
led chip brand EPISTAR from Taiwan with high brightness
lumen (LM) 6000-6600lm
Life time 50000hours
Viewing Angle 120°
Charge time by sun 6hours
Discharge time full power 12hours
half power 24hours
working Temperature range( ℃) -20℃~+60℃
colour temperature range(k) 6000k
mounting height range (m) 3-4m
space between light range (m) 8-10m
Lamps material of main aluminum alloy
Certificate CE / ROHS / IP65
warranty period 2years
Packing & Weight product/packing size 1080*450*153mm
product/packing          weight 20kg
packing box 1180*510*200mm
Corton size Corton size
Q'ty/ctn 1set/ctn
GW.for corton 22.5kg
Packs Containers 20GP 230sets
40GP 470sets

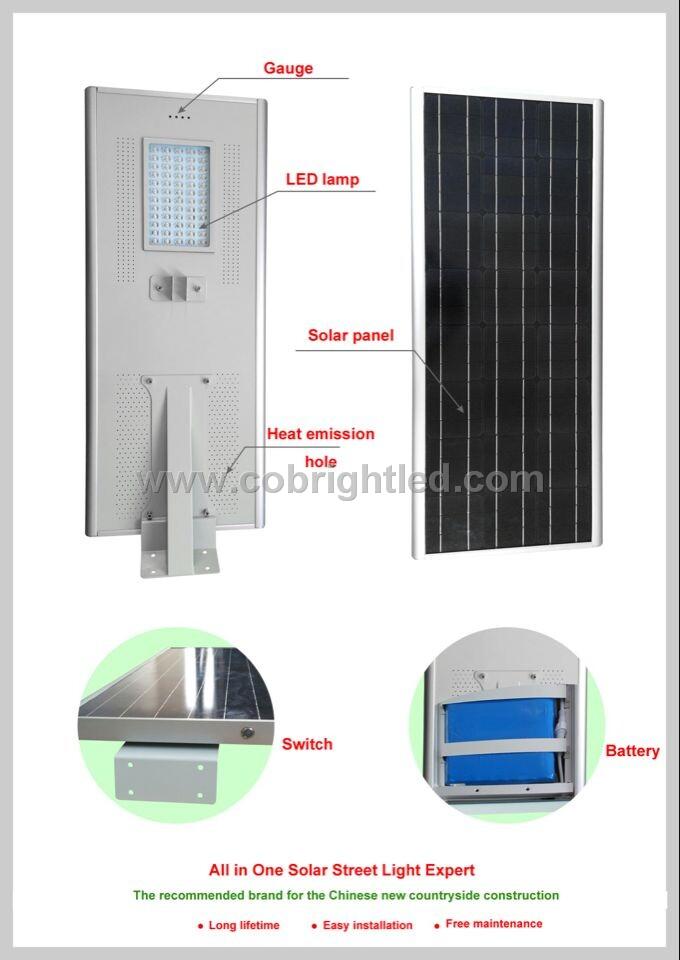

Photos:

Integrated Solar garden light (8W)

Model: C0SS-1508

Solar panel

Max power

18V15W (high efficiency Monocrystalline silicon)

Life time

25 years

Battery

Type

6AH lithium battery

Life time

5 years

LED Lamp(without sensor)

Max power

12V 8W

led chip brand

EPISTAR from Taiwan with high brightness

lumen (LM)

800-880lm

Life time

50000hours

Viewing Angle

120°

Charge time

by sun

6hours

Discharge time

full power

12hours

half power

24hours

working Temperature

range( ℃)

-20℃~+60℃

colour temperature

range(k)

6000k

mounting height

range (m)

3-4m

space between light

range (m)

8-10m

Lamps material of main

aluminum alloy

Certificate

CE / ROHS / IP65

warranty period

2years

Packing & Weight

product/packing size

 515*320*52mm / 530*390*140MM

product/packing           weight

5.5kg/ 6.5kg

packing box

neutral

Corton size

560*W570*H410MM

Q'ty/ctn

4sets/ctn

GW.for corton

26kg

Packs Containers

20GP

800pcs

40GP

1600pcs
